Air-cooled chiller

一： Product line

Model: dw-a series

Type: air cooled cooling (external rotor fan)

Structure: all in one machine (including water tank and water pump)

Refrigeration capacity range: 2.5kW~135kW

Temperature control accuracy: ± 1 ℃ (support customization of ± 0.1 ℃)

Temperature range: 5 ℃～ 35 ℃

Pump pressure: 2kg~8kg (customized according to requirements)

Can you customize: Yes (please contact the sales consultant if you support all kinds of customization)

Delivery date: 5~15 working days

二： Introduction of air cooled chiller

1. chiller is a kind of refrigeration equipment composed of refrigeration system, waterway system and electrical system. The core is refrigeration system, which is composed of compressor, evaporator, condenser and expansion valve. The waterway system is composed of water pump pipeline and related valve components. The electrical system is composed of temperature controller and electrical components. Air cooled box type chiller is a chiller whose condenser (radiator) is fin type, which dissipates heat through one or more external rotor fans and the environment.

2. core advantages of air-cooled type: it has its own refrigeration system, water pump, water tank and control system, which can be installed by customers on site, and can be used after power and water supply, without complicated installation process. It is used in areas where water sources are scarce and cooling water sources are inconvenient.

三： Application fields:

Davos West air-cooled chiller is an integrated machine, which is widely used in semiconductor processing, chip packaging, aerospace, reliability testing, chemical reaction, biopharmaceutical, surface treatment, material processing, vacuum coating, scientific experiments and other industries. It can accurately control the heat generated in the process of modern industry and technology, improve production efficiency and ensure production quality. There are many varieties and types with complete specifications.

四： Product features:

1. the temperature control system adopts a microcomputer controller, which has a simple and generous interface, intuitive and easy operation, and all kinds of operation indication conditions are clear at a glance. The wide temperature range can be adjusted arbitrarily between 5 ℃ and 35 ℃.

2. Danfoss, Denmark, Sanyo, Daikin, Copeland and other international well-known brands are adopted as the core components of the compressor, which is the guarantee of reliable operation of the unit.

3. The core refrigeration parts are international brand parts Danfoss in Denmark, emersonguo in the United States and excellent domestic suppliers.

4. the standard evaporator is 304 stainless steel water tank coil evaporator, and stainless steel plate evaporator/shell and tube evaporator can be selected.

5. the pipeline connection system can be configured with galvanized pipe, plastic pipe, stainless steel and other materials according to the customer's requirements.

6. the fluid equipment shall be domestic well-known brands, such as Hangzhou Nanfang, Grundfos, Weile, and Hangzhou Xinjie, or imported brand pumps or special customized pumps are required according to the process needs.

7. the electrical appliance adopts internationally famous electrical components such as LS Schneider Siemens Omron, without the need for special equipment room.

8. it has its own cooling system, cooling water pump, chilled water pump and water tank, which is easy to move and can be used after startup. It is suitable for water shortage areas and mobile occasions.

9. the current fully automatic intelligent control system has water temperature, high temperature alarm, water flow, fault signal alarm output, and can be customized for remote control.

10. it can meet the demand of 24-hour continuous production for process cold source in industrial production.

Note: the company provides on-site selection in the early stage to assist customers in selecting the appropriate model and process planning.

五： Technical parameters of standard products

Remarks: 1. refrigeration capacity is based on: chilled water inlet and outlet temperature 12 ℃/7 ℃, condensation temperature 40 ℃ (nominal refrigeration capacity)

2. working range: chilled water temperature range: 5 ℃～ 35 ℃; Chilled water inlet and outlet temperature difference: 3 ℃ to 8 ℃ control accuracy ± 1 ℃

3. use in the environment with the ambient temperature not higher than 35 ℃ and ensure good ventilation

4. the above parameters are standard model parameters. If you have any, please call! Reserve the right to change the above parameters or dimensions without notice

6： Equipment picture display

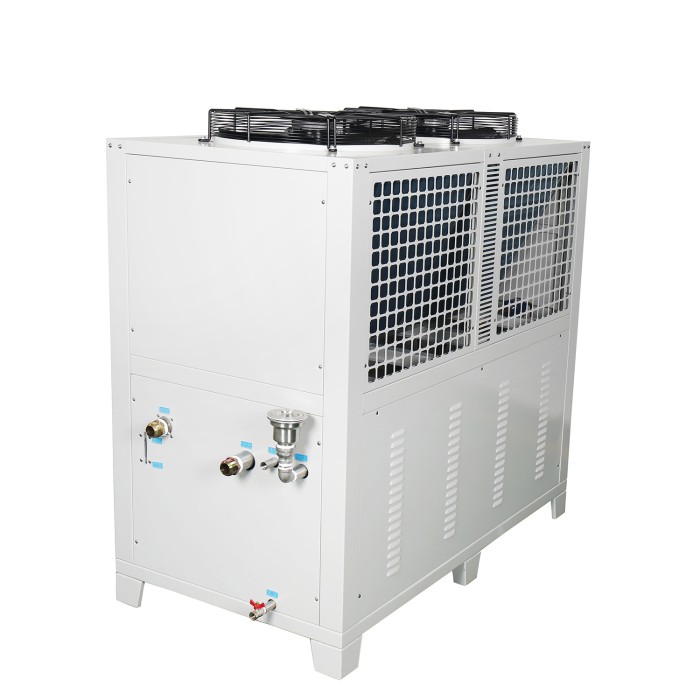

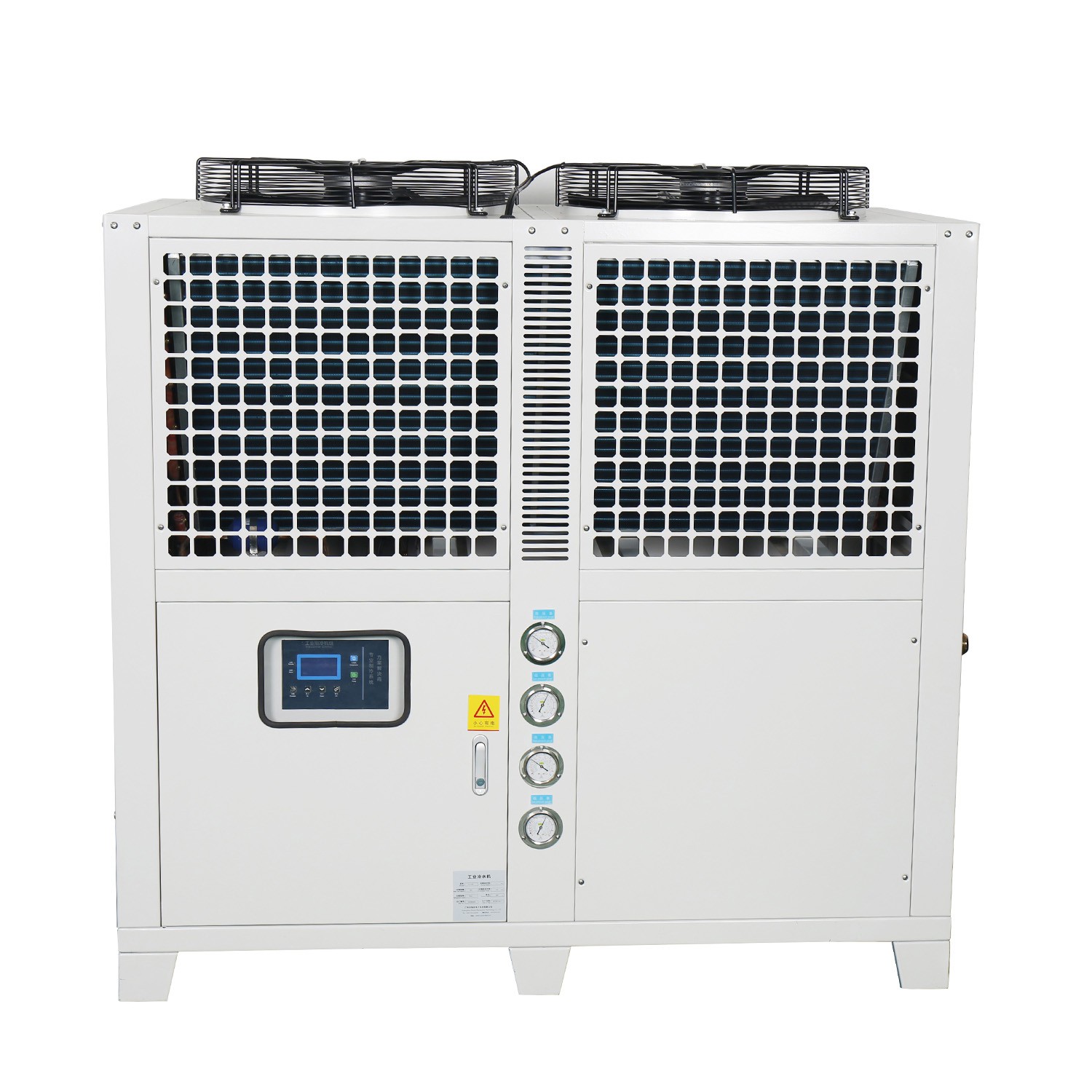

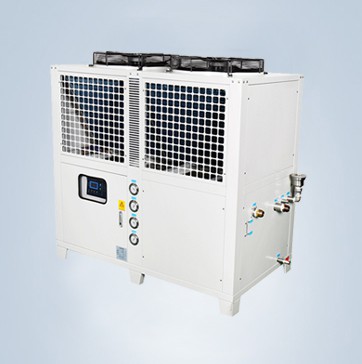

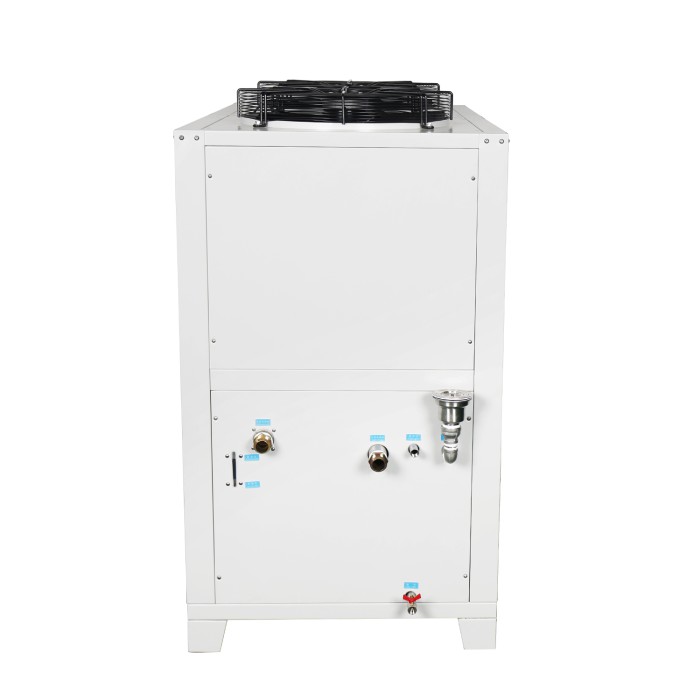

(1) : the display model is air-cooled box type water chiller dw-15a

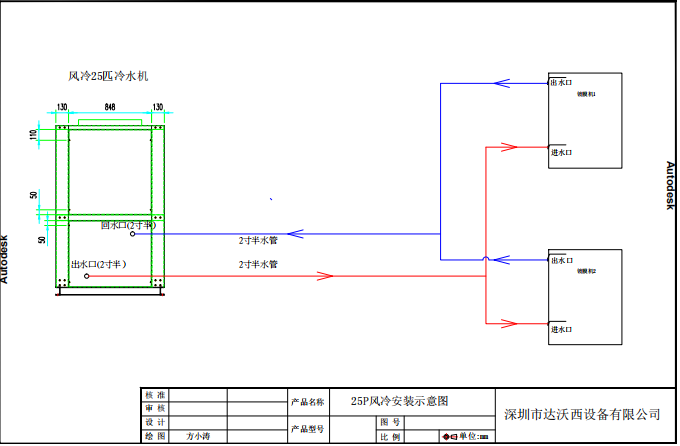

(2) : four intentions for connecting with equipment:
